Details :
3mA measuring current permits the testing of earth resistance without tripping leakage current circuit breakers int he ciruit
Capable of measuring earth voltage
Measures earth resistance in 3 ranges: 20 Ohms, 200 Ohms, 2000 Ohms
Designed,
Specifications :
Range of measured resistances Rx, mOhm ..0-20000
Limit of absolute basic error in measurement, mOhm .±(1+0.01*Rx)
Weight of microohmmeter, kg 3.6
Dimensions, mm 210*235*75
Operating temperature range, C -15
Distinctive features of the device :
High measurement accuracy on a real transformer - [unlike analogues MIKO-7 shows a claimed accuracy not only in laboratory conditions, but also on the operating facility]
Automating the process of measuring the
Additional features of the device :
Definition of transformer condition (defective or not) - [automatic calculation of relative deviations between the winding resistances];
Determine the exact location of the defect in transformer - [recount linear

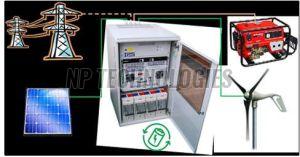

Main technical details :
Umpp (DC): 140V ... 450 V
U (AC) in.: 220 V / 3 x 400 V
U (DC) out.: 48 V
U (AC) out.: 220 V / 3 x 400 V
Power: 2 kW ... 65 MW
Max. energy storage in batteries: 315 MWh
Intelligent diesel generator and grid control
Software
Specifications :
U out: 48 VDC (24 VDC)
I max: 360 A
Up to 8 rectifier modules per system
Hot swap technology
Low voltage disconnect
Temperature compensation
Remote
Main technical details :
U out: 24 VDC ... 360 VDC
U out, stabilized: 24 VDC ... 240 VDC
I max: 600 A
Hot swap technology
Low voltage disconnect
Temperature compensation
Remote
Details :
Test Function:Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, Rs-Q, Z-r, Z-d
Auto, Hold and Nominal ranging. Total of 9 ranges.
Includes Internal, Manual, External and Bus Trigger
Correction Function;
Main technical details :
F in: 60 Hz, 400 Hz
F out: 50 Hz, 60 Hz
P max: 500 kVA
Galvanic isolation between input and output
Modification: modular system or standalone
